Description

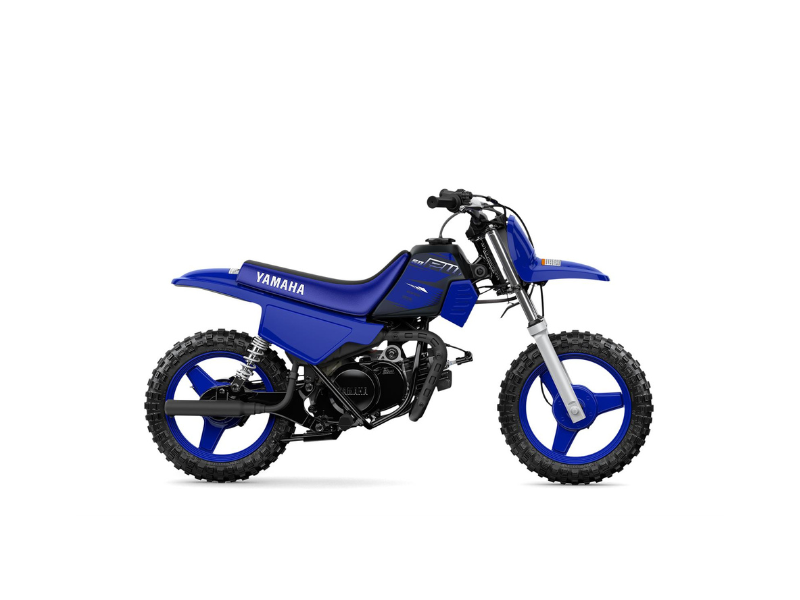

2024 PW50 IN
ACTION
THE PERFECT FIRST STEP
SPECIFICATIONS
ENGINE
Engine Type
49cc air-cooled 2-stroke; reed-valve induction
Bore x Stroke
40.0mm x 39.2mm
Compression Ratio
6.0:1
Fuel Delivery
VM12 Carburetor
Ignition
CDI
Transmission
Wet centrifugal automatic
Final Drive
Shaft
CHASSIS
Suspension / Front
26mm telescopic fork; 2.4-in travel
Suspension / Rear
Unit swingarm; 2.0-in travel
Brakes / Front
Drum
Brakes / Rear
Drum
Tires / Front
2.50-10-4PR
Tires / Rear
2.50-10-4PR
DIMENSIONS
L x W x H
49.0 in x 24.0 in x 27.8 in
Seat Height
18.7 in
Wheelbase
33.7 in
Rake (Caster Angle)
25.5°
Trail
2.0 in
Maximum Ground Clearance
3.7 in
Fuel Capacity
4.2 gal
Fuel Economy
0.5 gal
Wet Weight
90 lb
