Description

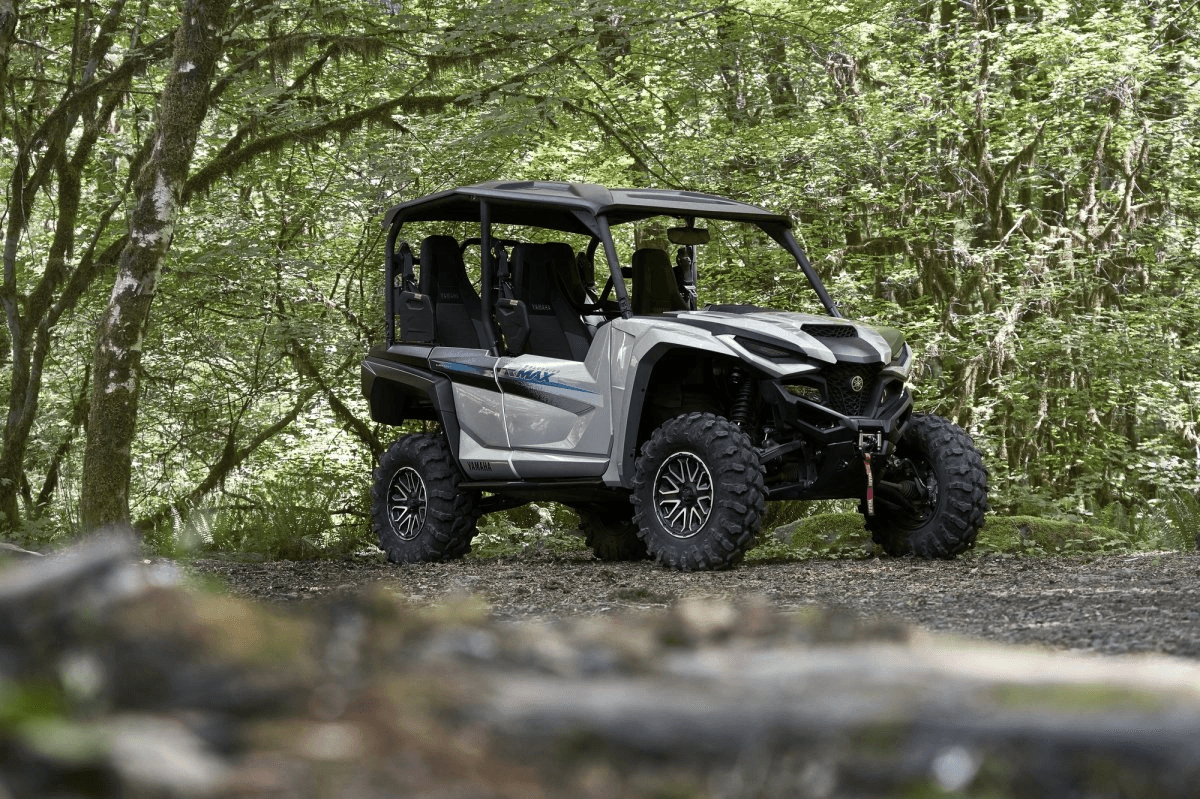

2024 WOLVERINE RMAX4 1000 LIMITED EDITION IN
ACTION
LIMITED EDITION, MAXIMUM ADVENTURES
SPECIFICATIONS
ENGINE
Engine Type
999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke
93.0mm×73.5mm
Compression Ratio
11.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission
Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Fuel Capacity
9.2 gal
CHASSIS
Suspension / Front
Independent double wishbone with anti-sway bar, FOX® iQS piggyback shocks; 14.2-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar, FOX® iQS piggyback shocks; 13.3-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
29 x 9.00R-14 Maxxis® Carnage
Tires / Rear
29 x 11.00R-14 Maxxis® Carnage
DIMENSIONS
L x W x H
128.1 in x 66.0 in x 83.1 in
Wheelbase
90.2 in
Fuel Capacity
9.2 gal
Wet Weight
2,059 lbs
