Description

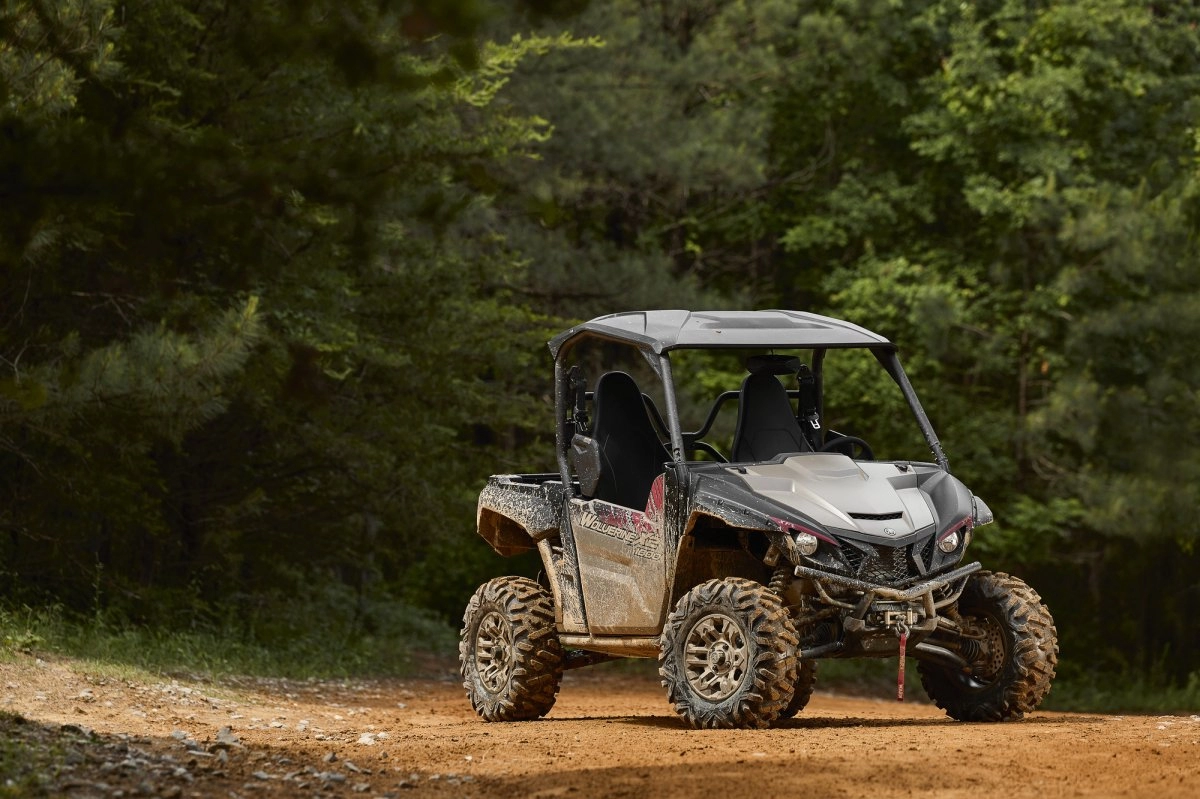

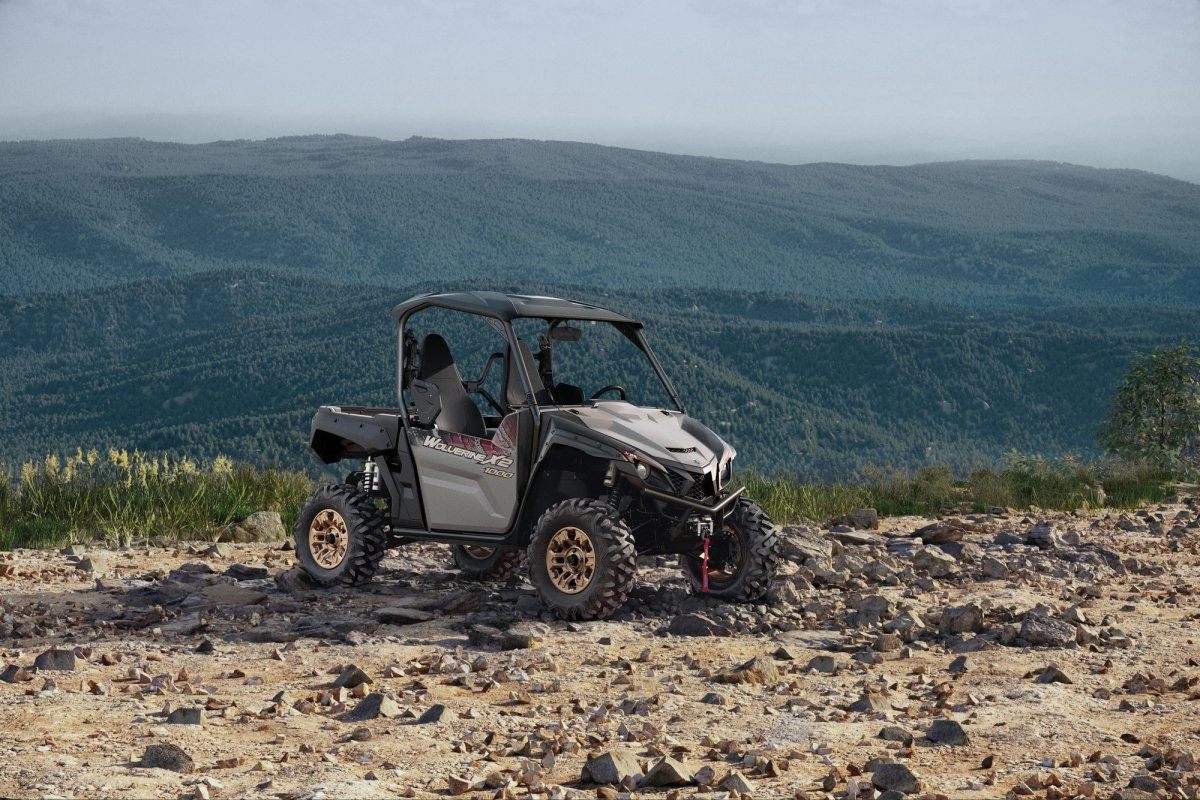

2024 WOLVERINE X2 1000

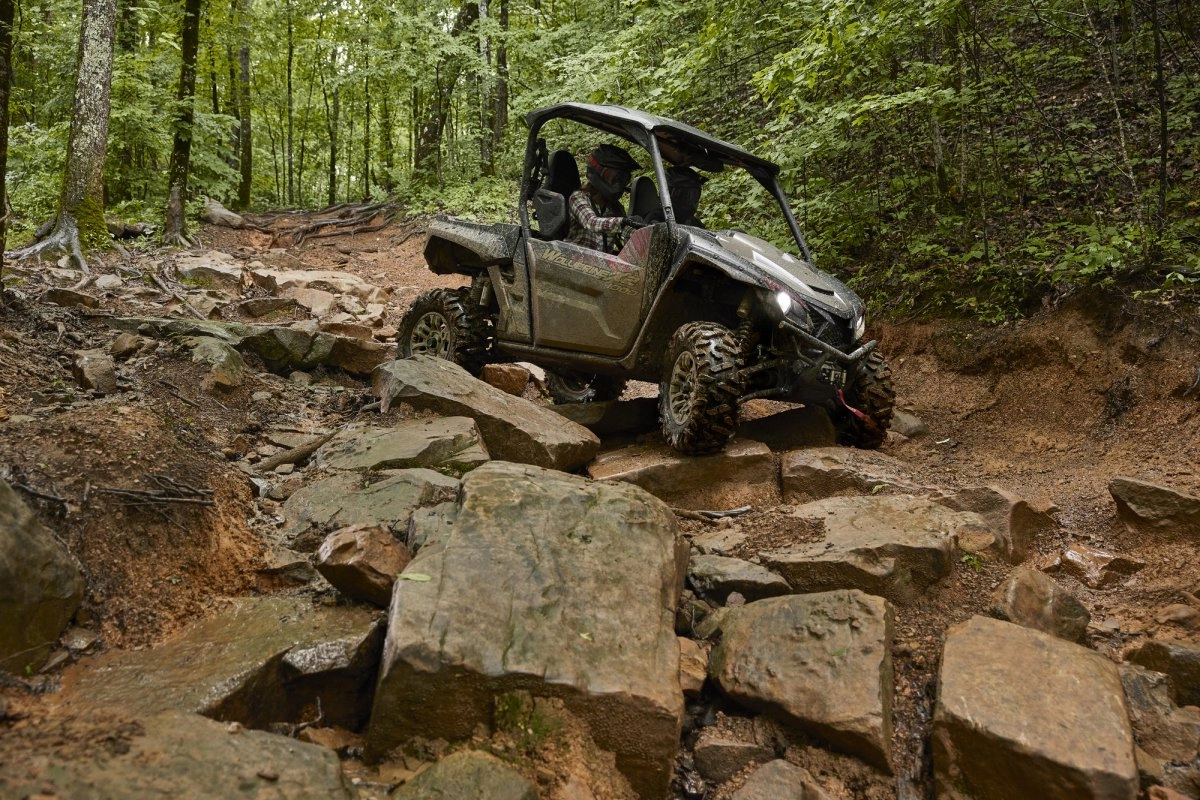

XT-R IN
ACTION
PERFORMANCE DRIVEN, VALUE PACKED
SPECIFICATIONS
ENGINE
Engine Type
999cc liquid cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke
93.0mm×73.5mm
Compression Ratio
11.2:1
Fuel Delivery
Yamaha Fuel Injection (YFI); dual 48mm throttle bodies
Transmission
Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Fuel Capacity
9.2 gal
CHASSIS
Suspension / Front
Independent double wishbone with anti-sway bar; SACHS® ZF piggyback shocks with compression and preload adjustability; 13.3-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar; SACHS® ZF piggyback shocks with compression and preload adjustability; 15.5-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
29 x 9.00R-14 Maxxis® Carnage
Tires / Rear
29 x 11.00R-14 Maxxis® Carnage
DIMENSIONS
L x W x H
115.0 in x 63.6 in x 77.2 in
Wheelbase
83.7 in
Fuel Capacity
9.2 gal
Wet Weight
1,760 lbs
