Description

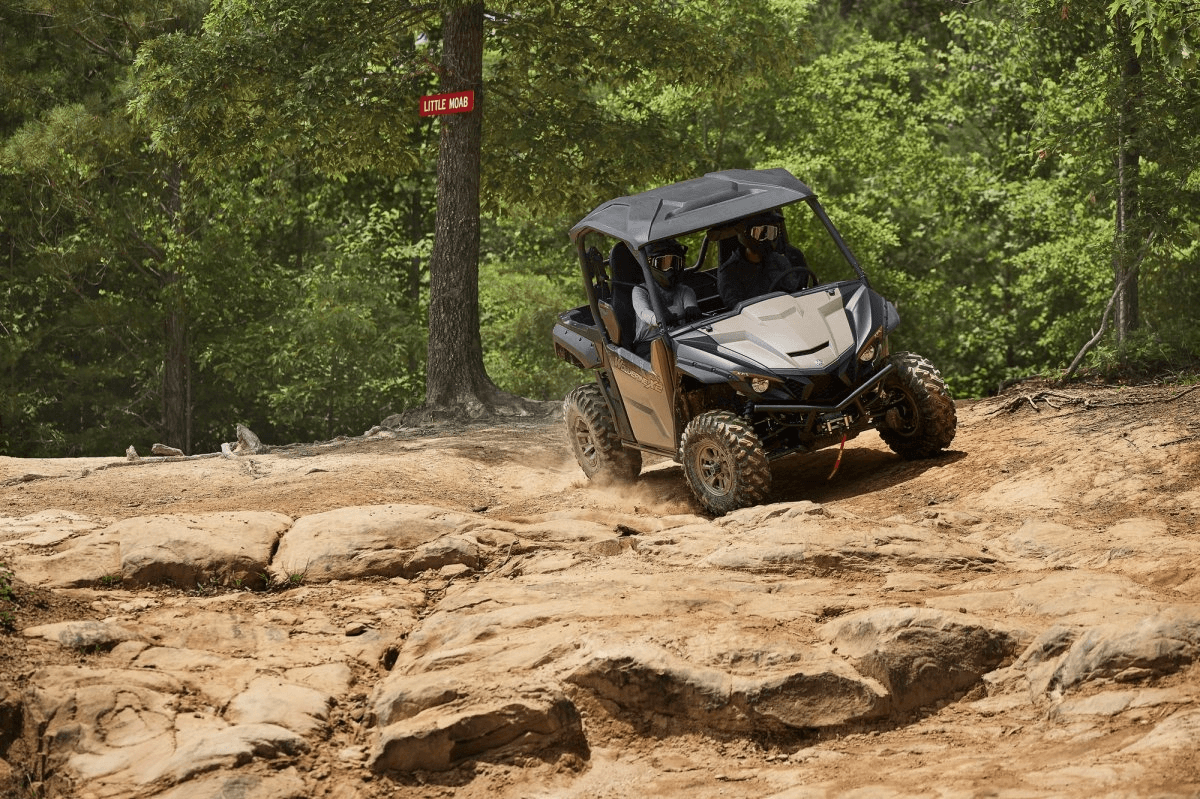

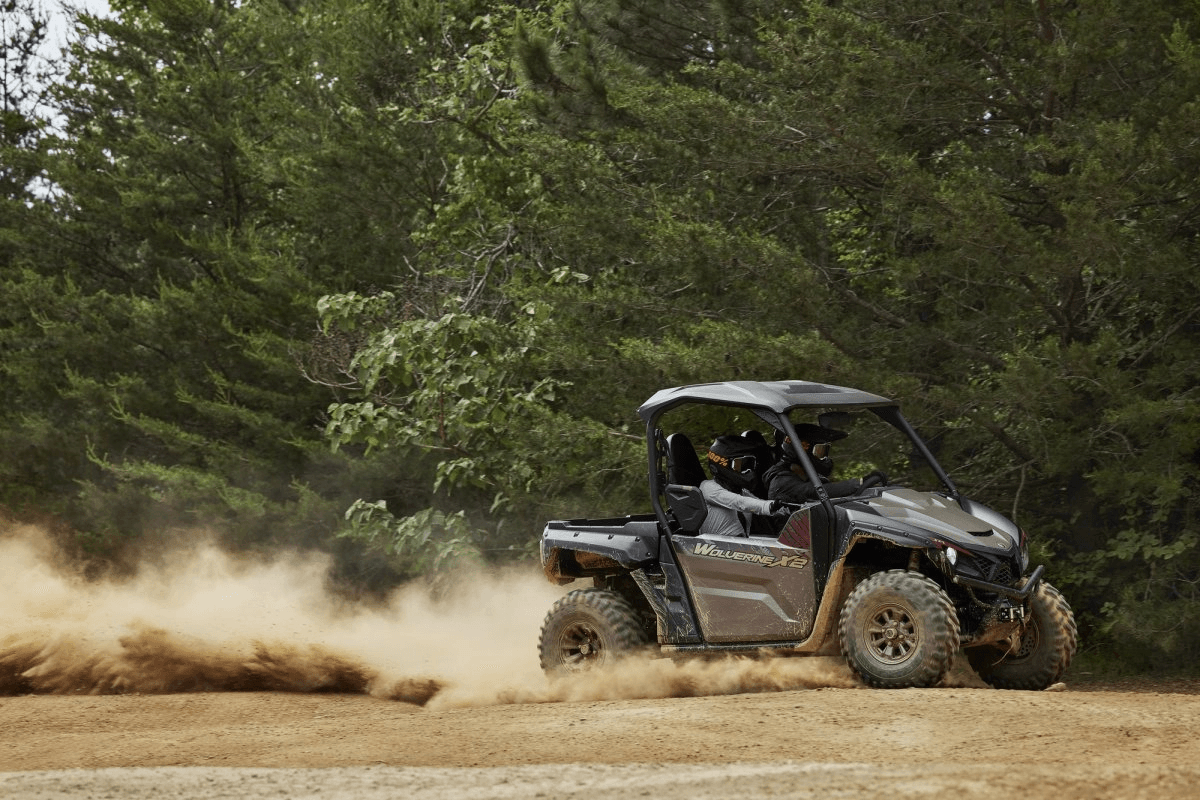

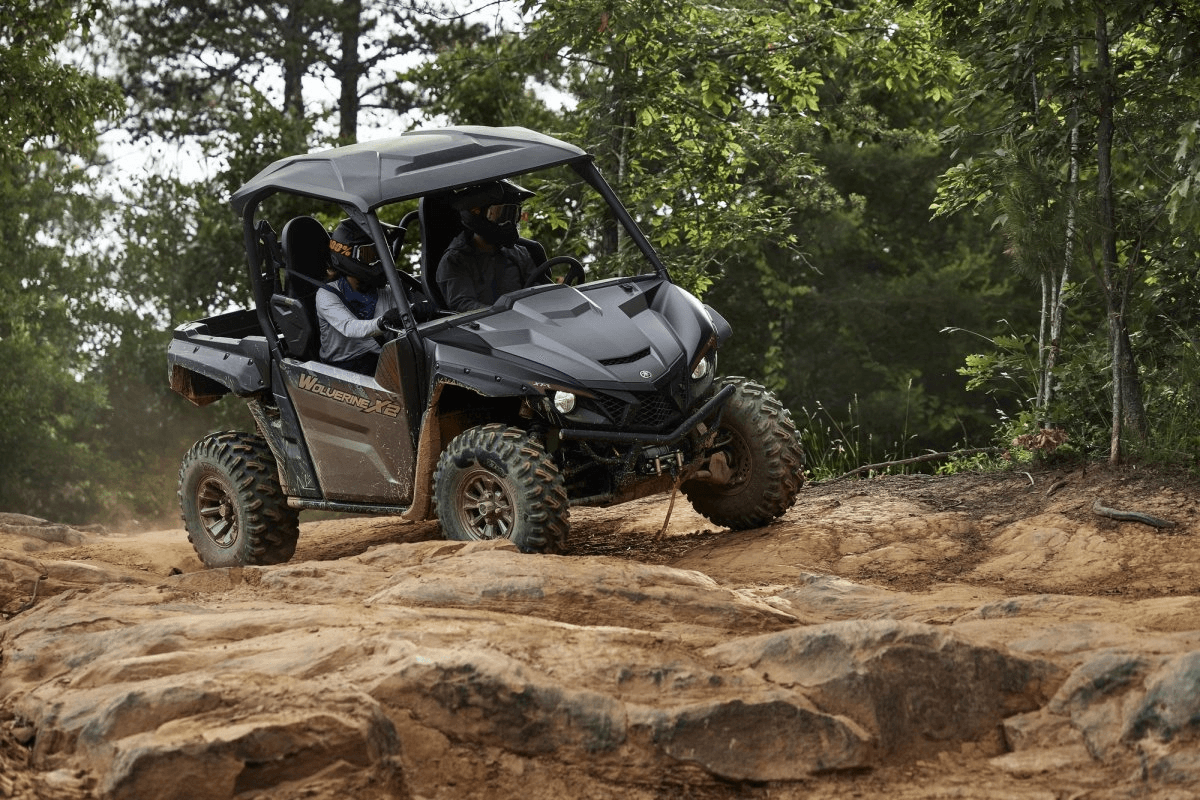

2024 WOLVERINE X2 850 XT-R IN
ACTION
TURN UP YOUR ADVENTURE
SPECIFICATIONS
ENGINE
Engine Type
847cc parallel-twin, liquid-cooled, 4-stroke, DOHC, 4-valve
Bore x Stroke
82.0mm x 80.2mm
Compression Ratio
10.5:1
Fuel Delivery
Yamaha Fuel Injection (YFI); dual 36mm throttle bodies
Transmission
Ultramatic V-belt with all-wheel engine braking; L, H, N, R
Final Drive
On-Command 3-way locking differential; 2WD, 4WD, full diff-lock 4WD
Fuel Capacity
9.2 gal
CHASSIS
Suspension / Front
Independent double wishbone with anti-sway bar, fully adjustable KYB® piggyback shocks; 8.7-in travel
Suspension / Rear
Independent double wishbone with anti-sway bar, fully adjustable KYB® piggyback shocks; 9.3-in travel
Brakes / Front
Dual hydraulic disc
Brakes / Rear
Dual hydraulic disc
Tires / Front
AT27 x 9-12 GBC® Dirt Commander
Tires / Rear
AT27 x 11-12 GBC® Dirt Commander
DIMENSIONS
L x W x H
115.0 in x 62.2 in x 75.3 in
Wheelbase
83.7 in
Fuel Capacity
9.2 gal
Wet Weight
1,704 lbs
