Precision Unleashed: Embrace the Speed of the R1
SPECIFICATIONS
ENGINE
Engine Type
998cc, liquid-cooled inline 4 cylinder DOHC; 4-valves per cylinder
Bore x Stroke
79.0mm x 50.9mm
Compression Ratio
13.0:1
Fuel Delivery
Fuel injection with YCC-T and YCC-I
Transmission
6-speed; wet multiplate assist and slipper clutch
Final Drive
Chain
CHASSIS
Suspension / Front
43mm KYB® inverted fork, fully adjustable; 4.7-in travel

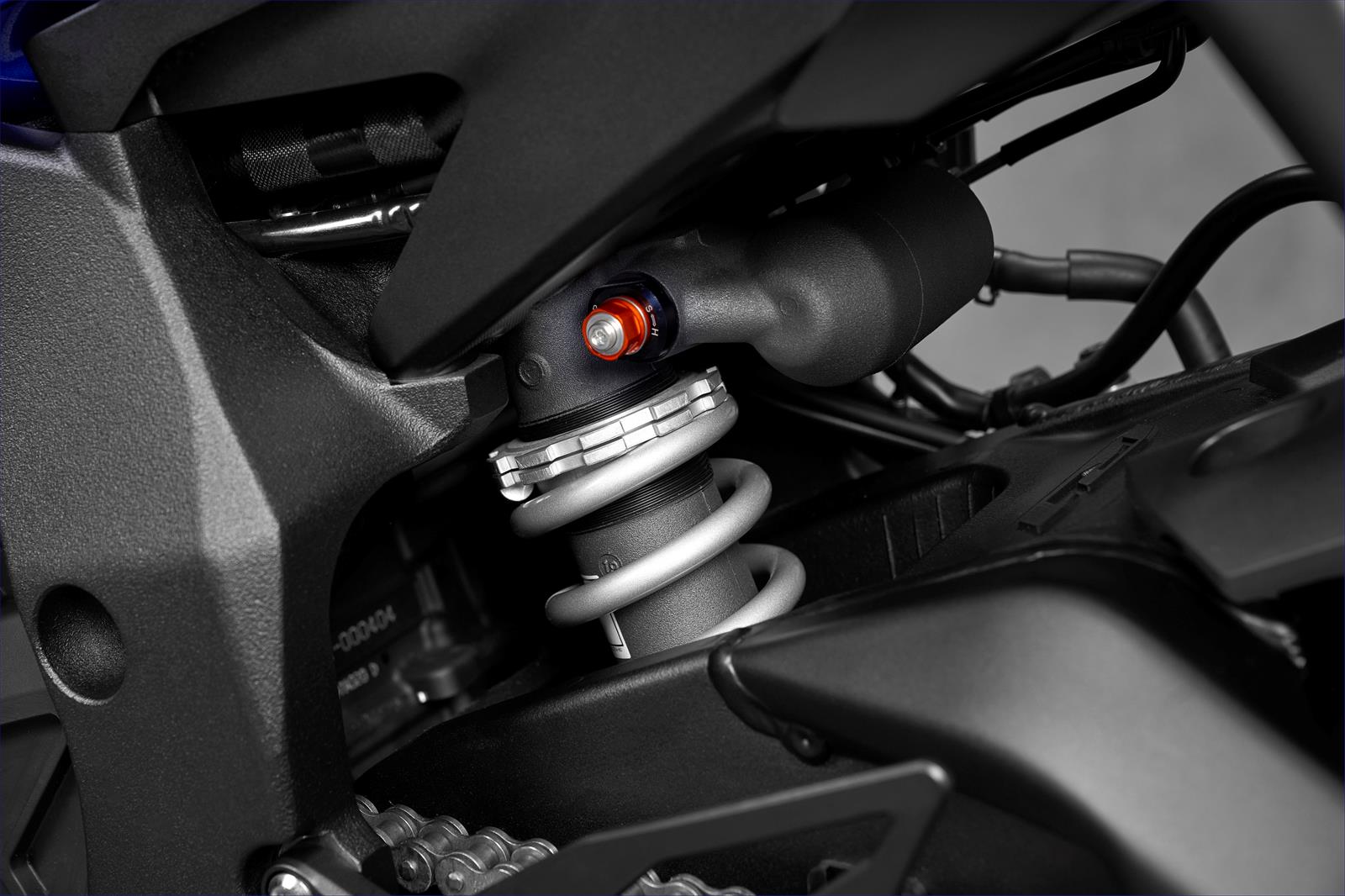

Suspension / Rear
KYB® single shock, fully adjustable; 4.7-in travel
Brakes / Front
Dual 320mm hydraulic disc; Brake Control System and ABS
Brakes / Rear
220mm hydraulic disc; Brake Control System and ABS
Tires / Front
120/70ZR17 Bridgestone® BATTLAX RACING STREET RS11F
Tires / Rear
200/55ZR17 Bridgestone® BATTLAX RACING STREET RS11R
DIMENSIONS
L x W x H
80.9 in x 27.2 in x 45.9 in
Seat Height
33.7 in
Wheelbase
55.3 in
Rake (Caster Angle)
24.0°
Trail
4.0 in
Maximum Ground Clearance
5.1 in
Fuel Capacity
4.5 gal
Fuel Economy
33 mpg
Wet Weight
448 lb
